Monday, September 30, 2019

Robotic Process Automation


  • What is Robotic Process Automation?

Robotic Process Automation is the technology that allows anyone today to configure computer software, or a “robot” to emulate and integrate the actions of a human interacting within digital systems to execute a business process. RPA robots utilize the user interface to capture data and manipulate applications just like humans do. They interpret, trigger responses and communicate with other systems in order to perform on a vast variety of repetitive tasks. Only substantially better: an RPA software robot never sleeps, makes zero mistakes and costs a lot less than an employee.
https://www.uipath.com/rpa/robotic-process-automation


  • What is robotic process automation?


RPA is an application of technology, governed by business logic and structured inputs, aimed at automating business processes. Using RPA tools, a company can configure software, or a “robot,” to capture and interpret applications for processing a transaction, manipulating data, triggering responses and communicating with other digital systems.
https://www.cio.com/article/3236451/what-is-rpa-robotic-process-automation-explained.html

Robotic Process Automation: What is RPA?


  • Robotic process automation (or RPA) is an emerging form of business process automation technology based on the notion of metaphorical software robots or artificial intelligence (AI) workers

In traditional workflow automation tools, a software developer produces a list of actions to automate a task and interface to the back-end system using internal application programming interfaces (APIs) or dedicated scripting language. In contrast, RPA systems develop the action list by watching the user perform that task in the application's graphical user interface (GUI), and then perform the automation by repeating those tasks directly in the GUI. This can lower the barrier to use of automation in products that might not otherwise feature APIs for this purpose.

RPA tools have strong technical similarities to graphical user interface testing tools. These tools also automate interactions with the GUI, and often do so by repeating a set of demonstration actions performed by a user. RPA tools differ from such systems including features that allow data to be handled in and between multiple applications, for instance, receiving email containing an invoice, extracting the data, and then typing that into a bookkeeping system.
https://en.wikipedia.org/wiki/Robotic_process_automation


Friday, September 27, 2019

SSL TLS

  • ssl validations

ssl auditing
ssl-server reporting
Since your certificate grade is public knowledge and is easily determined using SSLLabs or a similar tool, it also reflects on user opinion of your website.
https://www.ssllabs.com/

compliance testing output for PCI/HIPAA/NIST
https://www.immuniweb.com/ssl/

  • Verify your SSL, TLS & Ciphers implementation.

Having misconfigured SSL/TLS can lead your website to vulnerable, so check out following online tools to find out if something wrong.

  • Check if your SSL Certificate is installed properly and trusted by browsers

https://www.thesslstore.com/ssltools/ssl-checker.php

  • SSL/TLS Vulnerability &

Configuration Scanner
Check the supported protocol, server preferences,
certificate details, common vulnerabilities and more
TLS Scanner – detailed testing to find out the common misconfiguration and vulnerabilities.
https://gf.dev/tls-scanner

  • TLS Test – quickly find out which TLS protocol version is supported. As you can see, the tool is capable of testing the latest TLS 1.3

Check TLS Version
Test supported TLS version on the site
https://gf.dev/tls-test

  • Test an SSL Web Server

https://www.wormly.com/test_ssl

  • SSL Certificate Checker

https://www.digicert.com/help/

  • The Mozilla Observatory has helped over 170,000 websites by teaching developers, system administrators, and security professionals how to configure their sites safely and securely.

https://observatory.mozilla.org/

  • Let’s Encrypt is an open certificate authority that allows you to easily create free SSL certificates.

Let’s Encrypt is a free, automated, and open Certificate Authority.
https://letsencrypt.org/


  • The death knell for HPKP?

HTTP Public Key Pinning, or HPKP, has sure had an interesting journey as a standard but today marks what will probably be the final blow for the dying mechanism. Chrome has announced their plans to deprecate and remove support for HPKP as soon as 29th May 2018.
What is HPKP?
This document defines a new HTTP header that allows web host operators to instruct user agents to remember ("pin") the hosts' cryptographic identities over a period of time. During that time, user agents (UAs) will require that the host presents a certificate chain including at least one Subject Public Key Info structure whose fingerprint matches one of the pinned fingerprints for that host. By effectively reducing the number of trusted authorities who can authenticate the domain during the lifetime of the pin, pinning may reduce the incidence of man-in-the-middle attacks due to compromised Certification Authorities.
https://scotthelme.co.uk/the-death-knell-for-hpkp/


  • HPKP Suicide

Sadly there is a term for this and all it involves is a site making a potentially simple error. You enable HPKP, tell the browser which keys you will always use and then you lose those keys. They could be accidentally deleted, stolen in a hack or whatever, it doesn't matter. If you pin yourself to a set of keys and then no longer have the ability to use them, you're in big trouble
I also crawl the Alexa Top 1 Million sites every day and one of the things I monitor is the use of HPKP
https://scotthelme.co.uk/im-giving-up-on-hpkp/

Smashing Magazine used to send an HTTP header with each response that looked like this:



Public-Key-Pins:
pin-sha256="8RoC2kEF47SCVwX8Er+UBJ44pDfDZY6Ku5mm9bSXT3o=";
pin-sha256="78j8kS82YGC1jbX4Qeavl9ps+ZCzb132wCvAY7AxTMw=";
pin-sha256="GQGOWh/khWzFKzDO9wUVtRkHO7BJjPfzd0UVDhF+LxM=";
max-age=31536000; includeSubDomains
In theory, this header can be a strong weapon against the threat of “Man in the middle attacks.” These are attacks where someone would impersonate Smashing Magazine with a false certificate somehow generated via a Certificate Authority that your browser already trusts.


The key pinning header above tells browsers to refuse to accept any certificate that hasn’t been signed with one of the three keys indicated in the header for one year after visiting the site. Not just for www.smashingmagazine.com, but also for all other subdomains

Key pinning protects against a relatively rare attack that’s very hard to pull off and that’s not a major threat scenario against a content-driven website like Smashing Magazine, but it does so at the cost of potentially causing major — in the worst case even catastrophic — outages.
For Smashing Magazine this happened when they were updating their expiring SSL certificate. They created a new wildcard certificate, added the digest of the new private key to the Public-Key-Pins header

The old header had told visitors to Smashing Magazine that their browser should never accept any certificate that wasn’t listed in the old key pinning headers for the next 365 days.
all previous visitors with a browser that had pinned the old certificate were now completely unable to visit Smashing Magazine!
Even worse, this could not simply be rolled back since the old certificate had expired!

If you really think you need public key pinning, consider at least setting a max-age that’s low enough that you can survive it if something goes wrong.

https://www.smashingmagazine.com/be-afraid-of-public-key-pinning/


  • HTTP Public Key Pinning (HPKP) is a security feature that tells a web client to associate a specific cryptographic public key with a certain web server to decrease the risk of MITM attacks with forged certificates.


To ensure the authenticity of a server's public key used in TLS sessions, this public key is wrapped into a X.509 certificate which is usually signed by a certificate authority (CA). Web clients such as browsers trust a lot of these CAs, which can all create certificates for arbitrary domain names. If an attacker is able to compromise a single CA, they can perform MITM attacks on various TLS connections. HPKP can circumvent this threat for the HTTPS protocol by telling the client which public key belongs to a certain web server.

HPKP is a Trust on First Use (TOFU) technique. The first time a web server tells a client via a special HTTP header which public keys belong to it, the client stores this information for a given period of time. When the client visits the server again, it expects at least one certificate in the certificate chain to contain a public key whose fingerprint is already known via HPKP. If the server delivers an unknown public key, the client should present a warning to the user.

Firefox and Chrome disable pin validation for pinned hosts whose validated certificate chain terminates at a user-defined trust anchor (rather than a built-in trust anchor). This means that for users who imported custom root certificates all pinning violations are ignored.

Enabling HPKP
First you need to extract the public key information from your certificate or key file and encode them using Base64.

Setting up your webserver to include the HPKP header
Apache
Nginx
Lighttpd
IIS

https://developer.mozilla.org/en-US/docs/Web/HTTP/Public_Key_Pinning

  • What is HSTS?

HTTPS (HTTP encrypted with SSL or TLS) is an essential part of the measures to secure traffic to a website, making it very difficult for an attacker to intercept, modify, or fake traffic between a user and the website.

When a user enters a web domain manually (providing the domain name without the http:// or https:// prefix) or follows a plain http:// link, the first request to the website is sent unencrypted, using plain HTTP. Most secured websites immediately send back a redirect to upgrade the user to an HTTPS connection, but a well‑placed attacker can mount a man‑in‑the‑middle (MITM) attack to intercept the initial HTTP request and can control the user’s session from then on.

HSTS seeks to deal with the potential vulnerability by instructing the browser that a domain can only be accessed using HTTPS. Even if the user enters or follows a plain HTTP link, the browser strictly upgrades the connection to HTTPS:
https://www.nginx.com/blog/http-strict-transport-security-hsts-and-nginx/

  •  Whenever a website connects through HTTP and then redirects to HTTPS, an opportunity for a man-in-the-middle attack is created and the redirect can lead the users to a malicious website because users first have to communicate with the non-encrypted version of the website

 A server implements the HSTS policy by supplying a header over an HTTPS connection which informs the browser to load a site using HTTPS rather than HTTP

 Explanation: If a user type in an address bar http://www.geeksforgeeks.com/ or geeksforgeeks.com this will create a chance for a man-in-the-middle attack. The redirect could be exploited to direct visitors to a malicious site instead of the secure version of the original site.


 https://www.geeksforgeeks.org/http-headers-strict-transport-security/

  • Securing Mobile Applications With Cert Pinning

Securing your mobile applications with cert pinning will help you ward off man-in-the-middle (MiTM) attacks, verify users using trusted certificates, and secure HTTPS network traffic
Implementing cert pinning in your mobile app can strengthen the security of its network communications and is a big step in protecting your app data. Once you invest in cert pinning, test to ensure that you have properly implemented cert pinning to prevent MiTM attacks
https://dzone.com/refcardz/securing-mobile-applications-with-cert-pinning?chapter=1

Thursday, September 26, 2019

Tactics, Techniques, and Procedures

  • Adversarial Tactics, Techniques, and Common Knowledge (ATT&CK) is a model and framework for describing the actions an adversary may take while operating within an enterprise network. The model can be used to better characterize and describe post-compromise adversary behavior. It both expands the knowledge of network defenders and assists in prioritizing network defense by detailing the post-compromise (post-exploit and successful access) tactics, techniques, and procedures that advanced persistent threats use to execute their objectives while operating inside a network.

https://mitre.github.io/unfetter/getting-started/
  • Hunting goes beyond rule-based detection approaches and focuses on proactively detecting and investigating threats.


Cyber hunting “trips” are hypothesis-driven, utilizing an initial question or hypothesis (e.g., a group of executives is traveling to China to conduct business negotiations; they are at high risk of compromise) to engage on an iterative, exploratory search through cybersecurity datasets.

Hunting trips focus on collecting Indicator(s) of Compromise (IoC) to find adversaries and can provide a strong basis for how to form a hypothesis.
Any hunt can and should take advantage of advanced statistical and machine learning techniques to help the analyst predict where to begin and how to proceed.
There are a wide variety of IoCs ranging from basic file hashes to hacking Tactics, Techniques, and Procedures (TTPs)

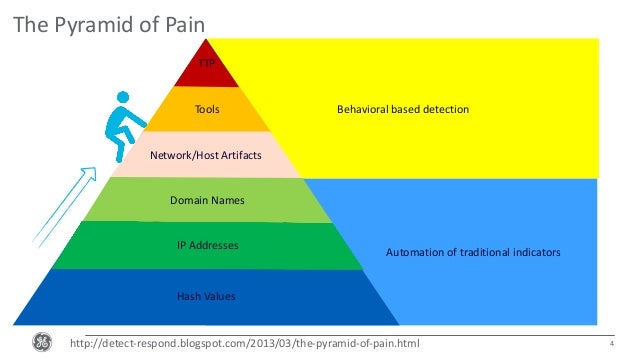

a concept called the Pyramid of Pain to categorize IoCs

When you detect and respond at this level, you are operating directly on adversary behaviors, not against their tools. “Spearphishing” is a common TTP for establishing a presence in the network. “Spearphishing with a trojan PDF file” or “… with a link to a malicious.SCR file disguised as a ZIP” would be more specific versions.
A key takeaway from Bianco’s Pyramid of Pain is that TTPs are the most valuable indicators.


https://sqrrl.com/a-framework-for-cyber-threat-hunting-part-1-the-pyramid-of-pain/


  • Understanding the Cyber Kill Chain in the Cloud

The cyber kill chain defines the lifecycle of a cyber attack and identifies various phases during a system intrusion.
The basic seven stages of the cyber kill chain are:

    Recon
    Weaponize
    Deliver
    Exploit
    Install
    Callback
    Persist

    Recon
    Open-Source Intelligence (OSINT) is the act of collecting information from publicly available sources.
    Armed with this information, attackers can launch very convincing spear phishing attacks during the delivery phase.

    Weaponize
    If the attack involves deploying malware it will need to be hosted somewhere. Similarly, if the attack involves phishing emails, then the attacker will need to craft the email bodies.
    This phase may use information gathered during the reconnaissance phase to develop attacks specific to a target.
    Automation allows for quickly provisioning infrastructure. This significantly reduces the time between the reconnaissance phase, and the actual strike.
    Creation of phishing pages, malware hosts, and command and control infrastructure can all be accomplished in a matter of minutes using common automation tools such as Puppet, Chef, or Ansible.

    Deliver
    This delivery can take the form of a phishing email, a watering hole attack, a supply chain attack, or even a dropped USB drive.
    Attackers have used popular services such as Pastebin, Github, or even Pinterest and Instagram to deliver their payloads.
    Users are much more likely to trust a link directing them to a known site with a valid certificate.

    Exploit
    During the exploit phase the attacker will exploit any vulnerabilities found during the reconnaissance phase.

    Install
    Once the initial exploit has taken place the attacker will begin to install their malicious payload. The installation phase usually consists of a series of installations.

    Callback
    In order to extract information that can be exploited for financial or other gain, the malicious payload must send this information back to the attackers.
    The callback phase is how attackers control their new asset. This connection can be used to extract information, add the compromised host to a botnet, or attack other systems on the network.
    By using popular public services, malicious traffic is more likely to bypass firewalls, and has the added benefit of blending in with regular traffic.
    The use of public services also provides resilience for the attackers infrastructure. Continuing with the Twitter example, all malicious traffic gets routed through Twitter’s servers. This makes investigations much more difficult as the traffic cannot be easily traced back to the attackers system

    Persist
    This may involve extracting valuable information, defacing websites, launching a denial-of-service attack, or moving laterally throughout the organizations network.


https://kai-taylor.com/understanding-the-cyber-kill-chain-in-the-cloud/
  • Defend like an attacker: Applying the cyber kill chain

    The “cyber kill chain” is a sequence of stages required for an attacker to successfully infiltrate a network and exfiltrate data from it.
    Each stage demonstrates a specific goal along the attacker’s path. Designing your monitoring and response plan around the cyber kill chain model is an effective method because it focuses on how actual attacks happen
    https://www.alienvault.com/blogs/security-essentials/defend-like-an-attacker-applying-the-cyber-kill-chain

    Lockheed Martin’s model is intrusion-centric, which was the focus of cybersecurity when it was created, and is indeed still the focus of (too) much cybersecurity effort today.
      http://www.darkreading.com/attacks-breaches/deconstructing-the-cyber-kill-chain/a/d-id/1317542

       the phases of an operation can be described as a "cyber kill chain.
        the phases of an attack can be described by 6 sequential stages.


        https://digital-forensics.sans.org/blog/2009/10/14/security-intelligence-attacking-the-kill-chain/
      • Developed by Lockheed Martin, the Cyber Kill Chain® framework is part of the Intelligence Driven Defense® model for the identification and prevention of cyber intrusions activity. The model identifies what the adversaries must complete in order to achieve their objective. The seven steps of the Cyber Kill Chain® enhance visibility into an attack and enrich an analyst’s understanding of an adversary’s tactics, techniques, and procedures.
      https://www.lockheedmartin.com/us/what-we-do/aerospace-defense/cyber/cyber-kill-chain.html


      • Lockheed Martin developed the Palisade™ solution to enable analysts to correlate malicious activity. It is not just an intelligence ingest engine or broker; it is a tool for analysts that supports the adoption of the Intelligence Driven Defense® methodology.


        http://lockheedmartin.com/content/dam/lockheed/data/corporate/documents/Seven_Ways_to_Apply_the_Cyber_Kill_Chain_with_a_Threat_Intelligence_Platform.PDF

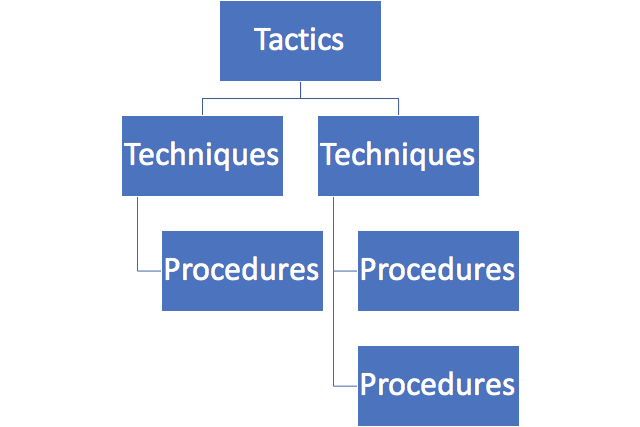

        • Tactics:

        These define the “why” weapon systems are used in a specific way.
        Cyberspace example: Reconfiguring a network in response to network intrusion threat. The tactic is the network protection re-configuration

        Technics:
        Nonprescriptive ways or methods used to perform missions, functions or tasks. They define the “what” is done to implement a tactic.
        Cyberspace example: employ filters, proxies, or sensors at multiple levels to support defense in depth tactics

        Procedures:
        Standard, detailed steps that prescribe how to perform specific tasks. These are the “how” techniques are employed. They are not directive in and of themselves, but can be documented in C/L’s, SOPs or TOs which ARE directive.
        Cyberspace example: to employ filters across multiple levels, you might coordinate and reconfigure the network and check post-configuration network status
        Each procedure may have an associated checklist, SOP or TO to direct specific actions but the overarching procedure is what is relevant

        Current TTPs

        Domain Name and IP Validation
        Alexa Top 1 Million – Database of top sites
        Proxy logs – Review logs for validation

        Detection of Possible Insider Threat
        Monitor HBSS DLP – Has ability to detect users booting in Safe Mode

        First Attack Indicators
        Ironmail – Gateway detection for malware
        Palo Alto – Create custom attack signatures

        Employment of Tactical Blocking
        Malicious activity/Counter Base Infrastructure Threats/CAC High Agility, etc..

        SSL Traffic Analysis and Decryption
        Decryption of SSL using Palo Alto/Wireshark/SSL Interdiction w/Blue Coat Proxy

        Methods of Blocking and Redirection
        Auto Black Hole List blocking via HBSS Firewall/Black Hole Listing…

        Methods of Network Forensics
        ID of DNS Redirection Vs Website Defacement
        Pinpointing Network Activity w/Network Monitor (NetMON)

        Methods of Host Forensics
        Account Validation
        ID Compliancy Levels of AFNet Hosts

        Defensive Cyber Operations
        Historical Pattern Matching
        OS Integrity
        File Integrity


        https://slideplayer.com/slide/12315724/


        • OSINT framework focused on gathering information from free tools or resources. The intention is to help people find free OSINT resources. Some of the sites included might require registration or offer more data for $$$, but you should be able to get at least a portion of the available information for no cost.

        https://github.com/lockfale/osint-framework

        • Threat Hunting with MITRE’s ATT&CK Framework: Part 1

        The framework consists of 11 tactics, from initial access, execution, all the way through command and control and data exfiltration
        Each phase of this attack lifecycle consists of a multitude of techniques that have been observed in the wild being used by various threat actor groups when compromising an organization’s network.

        When was the ATT&CK Framework Created?
        This framework can be extremely useful for gauging an environment’s level of visibility against targeted attacks with the tools that have been deployed across your endpoints and perimeter.
        That being said, I don’t personally think you need to check off all 282 - at the time of this writing - checkboxes to be uber secure from the bad guys.
        My approach to this framework has always been to focus more on the higher fidelity indicators while tagging the lower fidelity ones for threat hunting purposes.

        Let’s start off with the Execution phase. Once an adversary has easily tricked Bob in Accounting - who by the way clicks on everything that arrives to his inbox - there will be a series of activities that will execute on Bob’s machine unknowingly in the background. One of those items may be the execution of an ATT&CK technique, PowerShell, which is a built-in Windows tool that is commonly leveraged by malware to install itself.

        Running the functions DownloadFile, DownloadString, Base64ToString, Invoke-Shellcode, EncodedCommand, etc. are all naughty commands that should signal our IR Spidey Senses that an intruder has come a-knocking. Therefore, creating a simple signature that looks like something below will yield a high-fidelity threat alert for your Level 1 crew to immediately investigate.

        Process = Powershell.exe & Command_Line contains “DownloadFile, DownloadString, Base64ToString, Invoke-Shellcode, EncodedCommand”

        https://digitalguardian.com/blog/threat-hunting-mitres-attck-framework-part-1

        • Threat Hunting with MITRE’s ATT&CK Framework Part 2 – Advanced Use Cases

        I’d like to walk through three hunting use cases: Command & Control, Lateral Movement, and Data Exfiltration.
        Let’s start off with selecting a couple of techniques from the ATT&CK Framework to hunt for Command and Control activity; aka malicious network traffic. Our top hitting alarm, ATP – Outbound TCP Connections, will show all outbound connections made by process.

        Hunting for Lateral Movement
        One of the most effective methods I’ve used for years is baselining PsExec activity. PsExec is a remote administration tool and has been observed across many threat actor groups as being one of the tools of choice for conducting lateral movement.  Why? Because it’s a legitimate, Microsoft signed tool which allows them to blend in.
        For this analysis, we’re going to look at a few key fields. The process path, process name, and command line being executed.
        Defense Evasion techniques such as Masquerading.

        Process Path: The path by which a program runs can be quite relevant when it comes to threat hunting. Executing tools out of their standard locations isn’t cool so the bad guys create their own little hidden folders on the endpoint to be slick and remain clandestine. Aggregating on the process path may yield a few suspicious directories that require some additional investigation. Below, we see psexec.exe running from a c:\temp\32bit, c:\programdata, and a c:\misc.

        Process Name: The process name may, or may not indicate suspicious behavior but threat actors love to rename their toolsets and are super lazy on the command line. They love single character and two character binary names since it’s less to type. In the picture below we see a p.exe. Yikes… in this case, someone is covertly running the psexec tool or Masquerading.

        Command Line: Looking at the commands that are being executed by PsExec can be insightful as well.

        When confirming whether or not Lateral Movement is malicious, it’s good to conduct a ‘look around’ for everything that is executing around that time. Once a threat is on a box, they’ll engage in several additional techniques outlined within MITRE’s framework.


        Hunting for Data Exfiltration
        This hunting technique will come down to the types of tools and visibility you have in your own environment as it relates to outbound data egress,
        Above you’ll see a chart of the processes that are sending data outbound aggregated by total size.
        The file extensions associated with this activity includes ‘rar’ which I always feel is pretty threat-actor-esque and lines up with one of our MITRE ATT&CK stages for Data Compressed.
        Not all compressed data leaving the network is bad but tagging this activity with rules will help speed up the hunt process to zero in on possible exfiltration.
        Looking at the forensic details for this event, we see the source file is named 123.rar and it’s going directly to an IP address (forgive the redaction) over FTP.
        Data exfiltration hunting isn’t always going to be this effortless, but developing signatures to detect various types of events such as the one above will make your hunt a bit easier, especially when you’re able to pair this information with source process name/directory/command line etc.
        I remember back in the day when only being able to hunt through web proxy logs.

        A couple other tips to look for when it comes to data exfiltration include:
        Destination Domains being dynamic DNS Sites
        Source file extensions equal .rar, .7z, .zip, .tar, .cab, etc. (be careful here because this is easy to obfuscate with an extension name change)
        Protocols such as FTP, SFTP, SCP, SSH
        Tor traffic/domains

        This concludes our second installment of Threat Hunting with MITRE’S ATT&CK framework.

        https://digitalguardian.com/blog/threat-hunting-mitres-attck-framework-part-2-%E2%80%93-advanced-use-cases

        • Threat Hunting with MITRE’s ATT&CK Framework Part 3 – High Fidelity

        describes how to best leverage MITRE's Attack Framework for threat hunting.
        These particular techniques I’d consider to be higher fidelity and should ultimately be constructed into alarms for immediate response.
        Looking at the obfuscated command that generated the alarm… clearly not legitimate. So how do we proactively detect, and even better yet prevent this in the future? Creating signatures for this particular technique is highly advised and will yield almost zero false positive
        https://digitalguardian.com/blog/threat-hunting-mitre-attck-framework-part-3-high-fidelity

        • MITRE ATT&CK™ APT3 Assessment

        MITRE’s ATT&CK for Enterprise, produced by the Cyber Security division of MITRE, is an adversarial behavior model for possible attacker actions. The ATT&CK matrix used is a visualization tool in the form of a large table, intended to help provide a framework to talk about attacks in a unified way. This is coupled to detailed descriptions of different tactics and techniques and how they differ from attacker to attacker.

        When you participate in the assessment, MITRE is the red team simulating the techniques, used by APT3 in this case, and we as McAfee are the blue team using our products to detect their actions and report them. When the red team attacks us with a variant of a technique, as a blue team, we need to prove we detected it.

        While MITRE’s evaluation focused on MVISION EDR’s detection capabilities, there are several aspects that defenders need to consider in order to properly triage, scope, contain and close an incident. During the APT3 attack we generated 200+ alerts and telemetry datapoints which were the core of MITRE’s evaluation. Yet we don’t expect analysts to review them individually. In MVISION EDR those 200+ data points got clustered into 14 threats which added context to paint a more complete picture of what happened in order to speed triage.

        Although it was not exercised by MITRE, the next step for the analyst would have been to use MVISION EDR’s real time search to further scope the affected devices and take containment actions (e.g. quarantine, kill processes, etc).
        https://securingtomorrow.mcafee.com/business/endpoint-security/mitre-attck-apt3-assessment/



        • Apply MITRE’s ‘ATT&CK’ Model to Check Your Defenses

        Once you have your list and risk classification ready, you must next study the tactics, techniques, and procedures used by these adversaries. For mapping their techniques and associated campaigns, we use the MITRE Adversarial Tactics, Techniques, and Common Knowledge model (ATT&CK). The matrix covers hundreds of techniques, and can be applied for different purposes. In this case, we will focus on the risk versus mapping the defensive architecture.
        With MITRE’s Navigator tool you can select an actor or malware family. After making the selection, the boxes in the matrix show which techniques the actor or malware has used.
        From these techniques we can learn how our environments protect against these techniques and where we have gaps. The goal is not to create coverage or signatures for each technique; the matrix helps organizations understand how attackers behave.
        Having more visibility into their methods leads us to the right responses, and helps us contain and eradicate attacks in a coordinated way. By comparing the multiple actors from your initial risk assessment, you can build the matrix from the perspective of high/medium/low risk and map it against your defenses.


        it is still good to ask yourself “What if we were a target?” Would your environment create enough visibility to detect and deal with these techniques?
        When we looked at the first quarter, we noticed that the three techniques were the most popular in the category of Privilege Escalation:

            Exploitation of vulnerability
            Process injection
            Valid accounts
        To determine your coverage and detection capacity, you should ask if the exploits used completely new vulnerabilities (no patches available) or if they had existed for a while. Would your environment have the right patches installed or are you missing them and have to take action?
        There are many ways to apply it for red teaming, threat hunting, and other tasks.
        https://securingtomorrow.mcafee.com/other-blogs/mcafee-labs/apply-mitres-attck-model-to-check-your-defenses/


        • The Pyramid of Pain

        To illustrate this concept, I have created what I like to call the Pyramid of Pain.  This simple diagram shows the relationship between the types of indicators you might use to detect an adversary's activities and how much pain it will cause them when you are able to deny those indicators to them

        Types of Indicators
        Hash Values: SHA1, MD5 or other similar hashes that correspond to specific suspicious or malicious files.  Often used to provide unique references to specific samples of malware or to files involved in an intrusion.
        IP Addresses:
        Domain Names:
        Network Artifacts: Observables caused by adversary activities on your network. Technically speaking, every byte that flows over your network as a result of the adversary's interaction could be an artifact, but in practice this really means those pieces of the activity that might tend to distinguish malicious activity from that of legitimate users.  Typical examples might be URI patterns, C2 information embedded in network protocols, distinctive HTTP User-Agent or SMTP Mailer values, etc.
        Host Artifacts: Observables caused by adversary activities on one or more of your hosts.  Again, we focus on things that would tend to distinguish malicious activities from legitimate ones.  They could be registry keys or values known to be created by specific pieces of malware, files or directories dropped in certain places or using certain names, names or descriptions or malicious services or almost anything else that's distinctive.
        Tools: Software used by the adversary to accomplish their mission.  Mostly this will be things they bring with them, rather than software or commands that may already be installed on the computer.  This would include utilities designed to create malicious documents for spearphishing, backdoors used to establish C2 or password crackers or other host-based utilities they may want to use post-compromise.
        Tactics, Techniques and Procedures (TTPs): How the adversary goes about accomplishing their mission, from reconnaissance all the way through data exfiltration and at every step in between.  "Spearphishing" is a common TTP for establishing a presence in the network.  "Spearphishing with a trojaned PDF file" or "... with a link to a malicious .SCR file disguised as a ZIP" would be more specific versions.  "Dumping cached authentication credentials and reusing them in Pass-the-Hash attacks" would be a TTP.  Notice we're not talking about specific tools here, as there are any number of ways of weaponizing a PDF or implementing Pass-the-Hash.

        The Pyramid Explained
        Both the width and the color are very important in understanding the value of these types of indicators.

        Hash Values
        Most hash algorithms compute a message digest of the entire input and output a fixed length hash that is unique to the given input.  In other words, if the contents of two files varies even by a single bit, the resultant hash values of the two files are entirely different.  SHA1 and MD5 are the two most common examples of this type of hash.
        You may also encounter so-called fuzzy hashes, which attempt to solve this problem by computing hash values that take into account similarities in the input.  In other words, two files with only minor or moderate differences would have fuzzy hash values that are substantially similar, allowing an investigator to note a possible relationship between them.

        http://detect-respond.blogspot.com/2013/03/the-pyramid-of-pain.html













        • This library of tests will walk you through each of the phases of MITRE’s ATT&CK framework allowing you to truly gauge your visibility and readiness for the inevitable

        https://github.com/redcanaryco/atomic-red-team


        • Categorizing and Enriching Security Events in an ELK with the Help of Sysmon and ATT&CK

        https://cyberwardog.blogspot.com/


        • The Playbook viewer is a system for parsing STIX2 content that contains an Adversary Playbook

        https://pan-unit42.github.io/playbook_viewer/?pb=sofacy


        • MITRE evaluates cybersecurity products using an open methodology based on our ATT&CK™ framework.

        Instead, we show how each vendor approaches threat detection in the context of the ATT&CK matrix.
        https://attackevals.mitre.org/



        • Adversary Emulation Approach

        While we aspire to test across the entirety of ATT&CK, the number of actions required to test all techniques and the many possible variations in implementation (i.e. procedures) makes testing across the entirety of ATT&CK impractical. Additionally, certain techniques are complex and are not implementable in a lab environment. Since we need a way to select a subset of techniques to define test criteria, as well as chain activity together, we choose to focus on techniques used by a known threat group, which we refer to as adversary emulation, for our evaluations.

        To generate our emulation plans, we identify public threat intelligence reporting, map techniques in the reporting to ATT&CK, chain together the techniques, and then determine a way to replicate the behaviors.

        When emulating an adversary, several factors differentiate the emulation from being a direct copy of the adversary’s actions or a full replay of an actual intrusion. First, the red team tasked with emulating the adversary generally does not use the actual adversary tools; instead, they attempt to emulate the techniques as closely as possible using publicly-available tools. To get “as close as possible,” the emulators analyze threat intel reports and malware reverse engineering reports to understand what the adversary (or specific pieces of the adversary’s malware) did at the lowest level. The emulators then map those observed functions to the closest analogous function of the publicly available tool, which may cause slight differences in functionality or implementation method.

        Another limitation of adversary emulation is that emulators rely on publicly-available threat reporting. Not all adversary activity is covered in public reporting, so emulations will only cover a portion of all adversary activity. For example, a new Windows patch may prevent a specific User Account Control (UAC) bypass technique. When faced with such a situation, the emulators may use another or newer UAC bypass technique that is available. We recognize that when emulating an adversary, we will only be able to mimic their historical behavior.

        To perform the evaluation using adversary emulation, we chain techniques together in a logical flow.We recognize that adversaries often do not execute atomic actions, so this is another limitation to the emulation of real adversary behavior.

        Another significant difference between our evaluations and the “real world” is that we do not have any “user noise” in our lab environment.Therefore, we encourage users of our results to perform additional testing in their own environments, which will have the noise necessary to determine if detections are valuable in your environment.
        https://attackevals.mitre.org/methodology/


        • CALDERA

        CALDERA is an automated adversary emulation system, built on the MITRE ATT&CK™ framework.
        CALDERA works by attaching abilities to an adversary and running the adversary in an operation. Full documentation for this system can be found in the wiki.
        https://github.com/mitre/caldera



        • Evaluation Process

        The evaluation is broken into four phases:
        Setup: Vendors install their product(s)/tool(s) in a Microsoft Azure cyber range we provide.
        Execution: During a joint evaluation session, our red team executes an adversary emulation.
        Processing and Feedback: We process the results, assign detection categories, and summarize detections into short notesPublication: We review all vendor feedback, but we are not obligated to incorporate it. When reviewing the vendor’s feedback, we consider how we apply detection categories across the entirety of the vendor’s evaluation as well as the other vendors’ results to ensure that we are making consistent and fair decisions. We release the evaluation methodology and the evaluation results onto the ATT&CK Evaluations website.
        https://attackevals.mitre.org/methodology/evaluation-process.html
